Projects

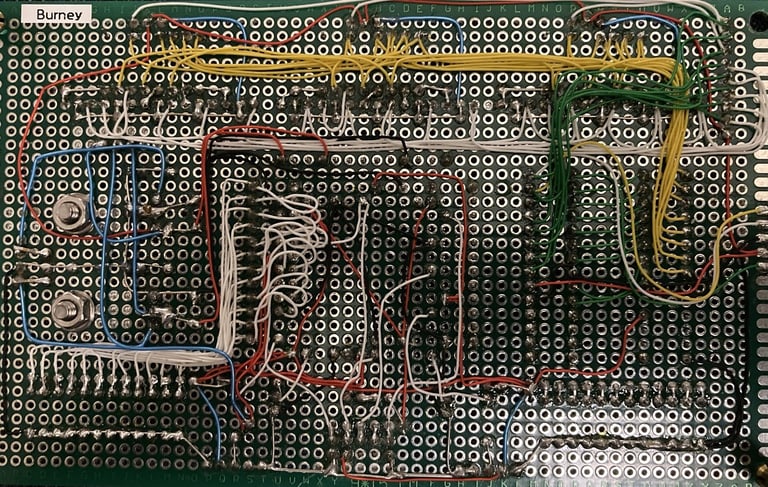

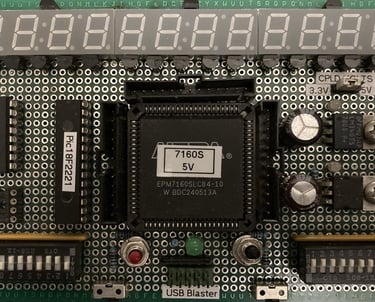

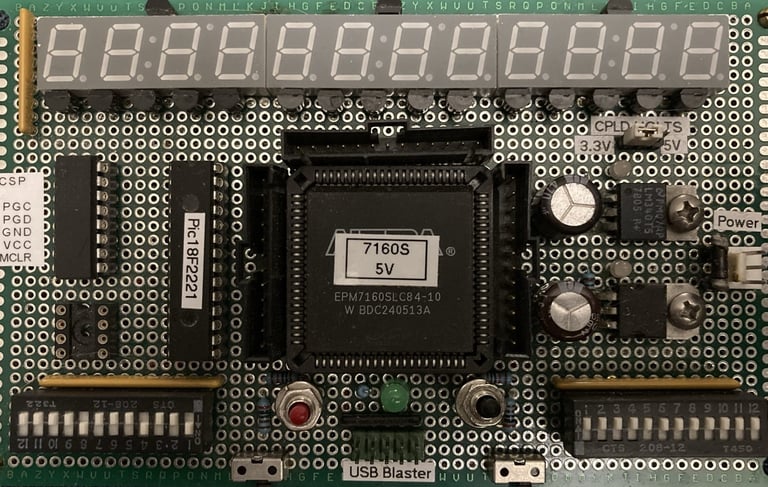

12 digit frequency counter

A pic micro controller drives the muliplexed display and gets it's data from the CPLD.

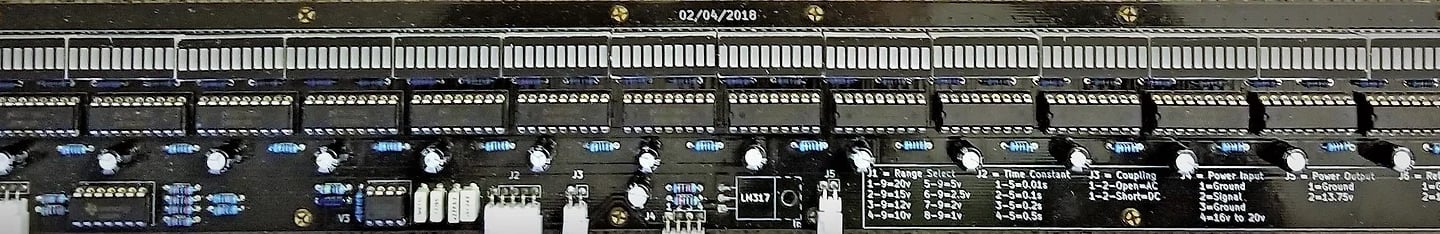

Digital linear Meter

Based on the LM3914

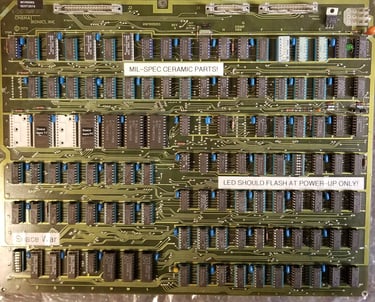

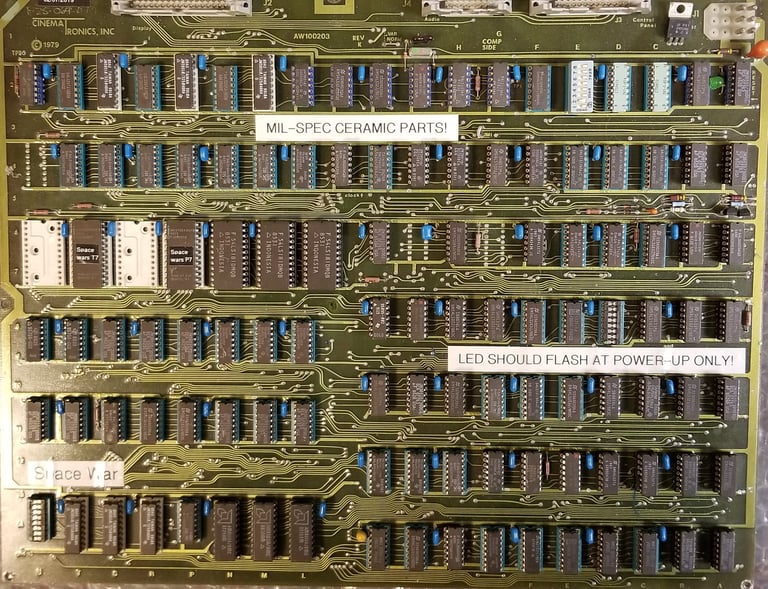

Vectorbeam / Cinematronics

This board was restored with all Mil-Spec parts with Auget machine pin sockets and is running Space Wars.
